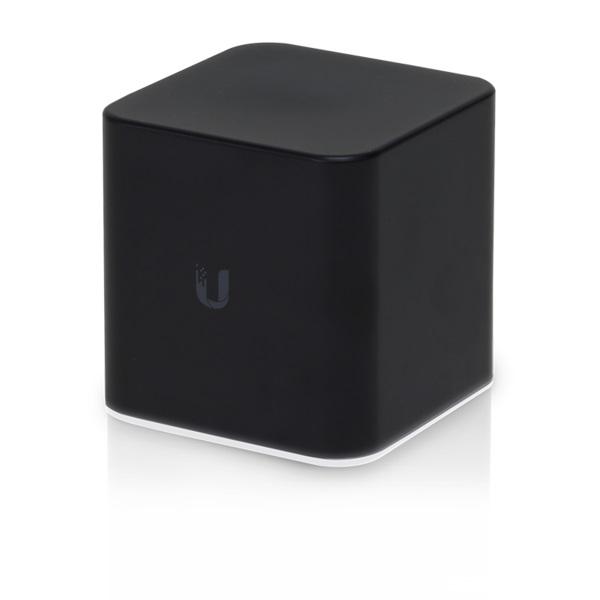

AirCube ISP Home Wi-Fi AP - ACB-ISP

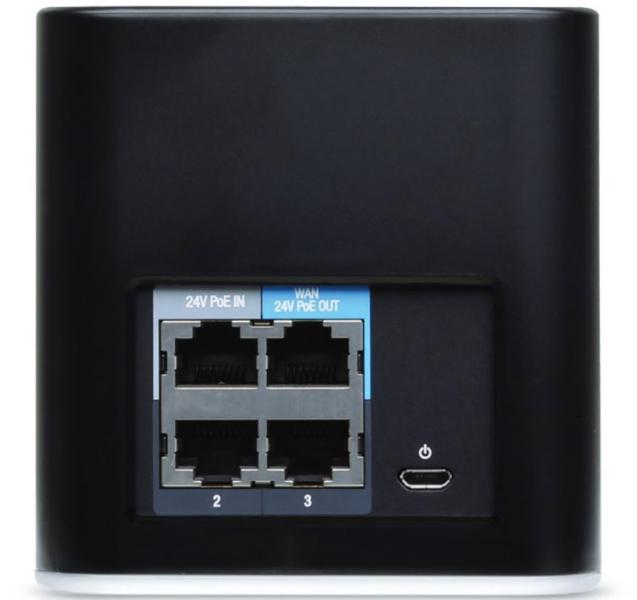

AirCube ISP is home router with modern design and very powerful / discrete antenna system hidden under a plastic chassis. The body of the router is in black matt color is complemented by an elegant white backlit base. The Router features 3x 10/100 Mbps LAN ports (1st LAN port supports PoE IN), 1x 10/100 Mbps WAN port with PoE output PoE, microUSB connector and 2x2 MIMO WiFi radio supporting 300Mbps speed in 2.4GHz. Router can be powering via unpacked microUSB power adapter or via 24V passive injector connected to the 1st LAN port, which will also power an outdoor unit such as Loco, PowerBeam, NanoBeam and other CPE connected to the WAN port. Specifications - WAN speed: (1) 10/100Mbps - LAN speed: (3) 10/100Mbps - Purpose: Indoor - Operating temperature [C]: -10 up to 50 - Dimensions [mm]: 90x90x88 - Max. power consumption [W]: 5 - Power over Ethernet: 24V DC - PoE type: Input and Output - Power via connector/terminal: 5V / 2A - Wireless frequency [GHz]: 2.4 - Transmission speed - WiFi 2.4GHz [Mb/s]: 300 - WiFi standards: 802.11n, 802.11b/g - Tx power 2.4GHz [dBm]: 22 - Security: WPA2 AES - 2.4GHz MIMO: 2 x 2 - Type of antenna: Build-in - Internal antennas: 1 - Antenna gain [dBi]: 4 Contents airCube ISP AP, Quick Start Guide
