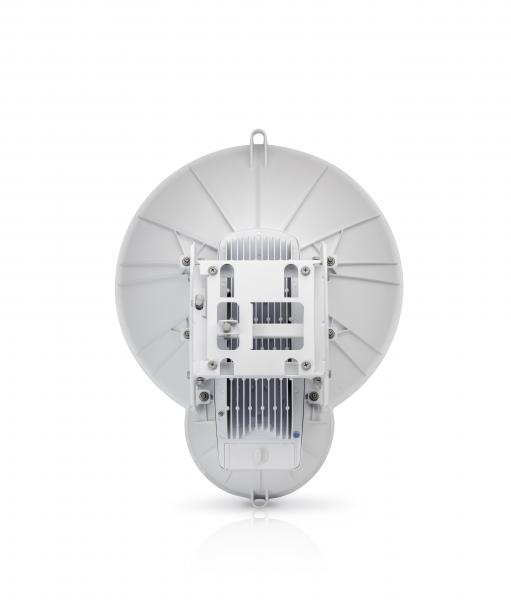

AirFiber 24HD - 2Gbps Backhaul, 24GHz

AirFiber AF-24HD provides a breakthrough in 24 GHz backhaul performance. The AF-24HD model supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps. The airFiber AF-24HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range among 24 GHz products and allows for constellation threshold extension. Specifications AF-24HD Operating Frequency: 24.05 - 24.25 GHz Dimensions: - Radio: 593 x 768 x 370 mm (23.35 x 30.24 x 14.57") - Box: 796 x 696 x 49.5 mm (31.34 x 27.40 x 1.95") Weight: - Radio (Mount Included):17.3 kg (38.14 lb) - Box: 25.5 kg (56.22 lb) Max. Power Consumption: 50W Power Supply: 50V, 1.2A PoE GigE Adapter (Included) Power Method : Passive Power over Ethernet Supported Voltage Range: +42 to +58VDC, -48VDC Certifications: CE, FCC, IC Wind Loading: 770 N @ 200 km/hr (170 lbf @ 125 mph) Wind Survivability: 200 km/hr (125 mph) Mounting: Pole Mount Kit (Included) Operating Temperature: -40 to 55 C (-40 to 131 F) LEDs: - 8) Status LEDs:, Data Port Speed, Data Port Link/Activity, Configuration Port Speed, Configuration Port Link/Activity, GPS Synchronization, Modulation Mode, Master/Slave, RF Status - (1) Two-Digit LED Display Calibrated in dBm Data Port: (1) 10/100/1000 Ethernet Port Configuration Port: (1) 10/100 Ethernet Port Auxiliary Port: (1) RJ-12, Alignment Tone Port Maximum Throughput: 2 Gbps Maximum Throughput: 20+* km(*This distance is unrealistic due to European restrictions. We advise calculating the link distance.) Encryption: 128-Bit AES Uplink/Downlink Ratio: 50% Fixed Package Contents airFiber AF-24HD, Pole Mount Bracket, Pole Clamps (2), GPS Antenna Mount, Carriage Bolts (4), Flat Washers (4), Split Lock Washers (4), Hex Nuts (4), Metal Strap, External GPS Antenna, Cable Ties (3), Gigabit PoE Adapter (50V, 1.2A), Power Cord, Quick Start Guide. * Indien dit product boven de toegestane limieten gebruikt wordt, is dit niet langer vergunningsvrij en zelfs illegaal (max zendvermogen: 100 mW op 2,4/24GHz en 200 mW op 5GHz). Wij raden u aan de standaard configuratie v.w.b. de landeninstelling en/of vermogensinstelling van de apparatuur niet te wijzigen. Het gebruik van meer dan het wettelijke toegestane vermogen kan leiden tot verminderde bruikbaarheid van WIFI in uw onmiddellijke omgeving.
