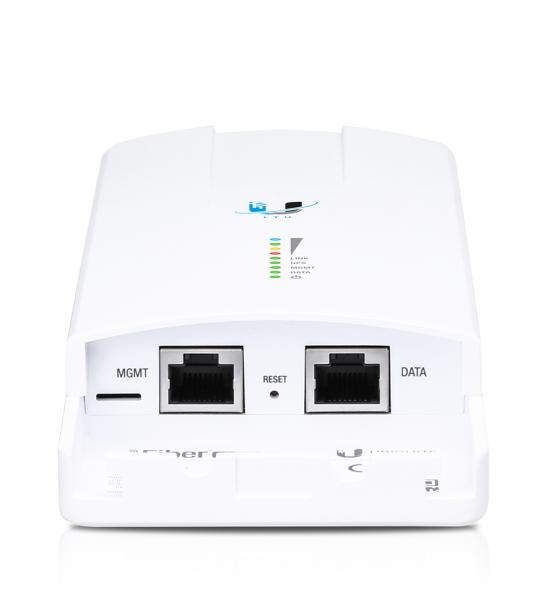

AirFiber AF-5XHD

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution. (3) Gigabit RJ45 Ports and (1) SFP Port (4-Core 1GHz MIPS64 Processor Internal PSU Fan-less (1) Backup 12V DC input connector, SmartPower RPS Specifications Dimensions: 224 x 82 x 48 mm Weight: 0.35 kg RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1), (1) SMA Weatherproof (GPS) GPS Antenna: External, Magnetic Base Power Supply: 24V, 1A Gigabit PoE Adapter (Included) Power Method: Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) Max. Power Consumption:6-12W Supported Voltage Range: +18 to +54VDC Mounting: airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included) Operating Temperature: -40 to 55 C Weatherproofing: IP67 {After installation of IP67 upgrade kit (included) Certifications: CE, FCC, IC Processor: airFiber LTU IC Maximum Throughput: 1.34 Gbps Maximum Range: 100 km Packets per Second: 2+ Million Latency: 1.5 ms - 3.5 ms Encryption: AES-256 OS: airOS LTU Wireless Modes: PtP Master/Slave Data Port: (1) 10/100/1000 Ethernet Port Management Port: (1) 10/100/1000 Ethernet Port Bluetooth v4.0 Package Contents airFiber AF-5XHD, GPS Antenna Mount, External GPS Antenna, Metal Strap, Zip Ties (2), Universal Bracket, IP67 Upgrade Kit (Vent and Gasket) Gigabit PoE (24V, 1A) with Mounting Bracket, Power Cord, Quick Start Guide. *Indien dit product boven de toegestane limieten gebruikt wordt, is dit niet langer vergunningsvrij en zelfs illegaal (max zendvermogen: 100 mW op 2,4GHz en 200 mW op 5GHz). Wij raden u aan de standaard configuratie v.w.b. de landeninstelling en/of vermogensinstelling van de apparatuur niet te wijzigen. Het gebruik van meer dan het wettelijke toegestane vermogen kan leiden tot verminderde bruikbaarheid van WIFI in uw onmiddellijke omgeving.
