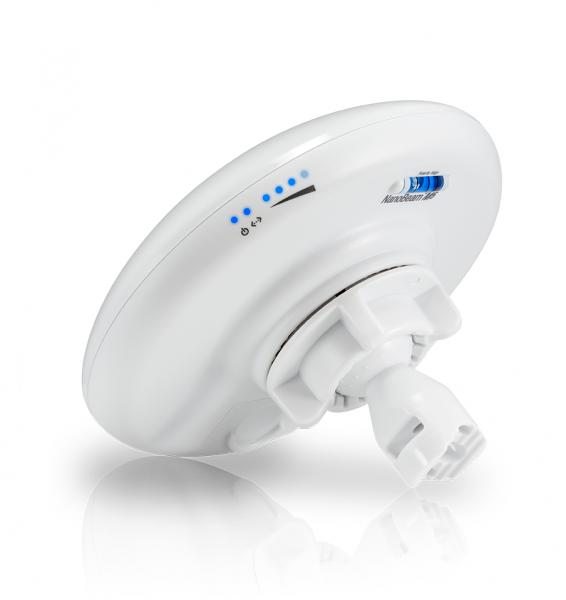

AirMax NanoBeam M5-16 - 5 Ghz, 16 dBi

Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an AirMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam. All-in-one design The NanoBeam provides both the radio and antenna in the smallest possible footprint. Quick and easy installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting. Convenient alignment The NanoBeam pivots on its ball joint for easy aiming. Efficient footprint The radio and antenna are combined into a single body that takes up minimal space. Versatile mounting The NanoBeam can be mounted in almost any position needed for line of sight. Aesthetics The NanoBeam is small enough to blend discreetly into the background at a customer's location. Specifications NanoBeam M5 16 Dimensions: 140 x 140 x 54 mm (5.51 x 5.51 x 2.13") Weight: 0.320 kg (0.71 lb) Power Supply: 24V, 0.5A PoE Max. Power Consumption: 6W Gain: 16 dBi Networking Interface: (1) 10/100 Ethernet Port Processor Specs: Atheros MIPS 74Kc, 560 MHz Memory: 64 MB DDR2, 8 MB Flash LEDs: (1) Power, (1) LAN, (4) WLAN Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels Max. VSWR: 1.5:1 Channel Sizes: 5/8/10/20/30/40 MHz Polarization: Dual Linear Mounting: Pole-Mount (Kit Included), Wall-Mount ESD/EMP Protection: Air: +/- 24 kV, Contact: +/- 24 kV Operating Temperature: -40 to 70 C (-40 to 158 F) Operating Humidity: 5 to 95% Noncondensing Wireless Approvals: FCC, IC, CE RoHS Compliance: Yes Package Contents NanoBeamM5, Ball Joint Mount, Lock Ring, Metal Strap, PoE Adapter (24V, 0,5A), Power Cord, Quick Start Guide. * Indien dit product boven de toegestane limieten gebruikt wordt, is dit niet langer vergunningsvrij en zelfs illegaal (max zendvermogen: 100 mW op 2,4GHz en 200 mW op 5GHz). Wij raden u aan de standaard configuratie v.w.b. de landeninstelling en/of vermogensinstelling van de apparatuur niet te wijzigen. Het gebruik van meer dan het wettelijke toegestane vermogen kan leiden tot verminderde bruikbaarheid van WIFI in uw onmiddellijke omgeving.
