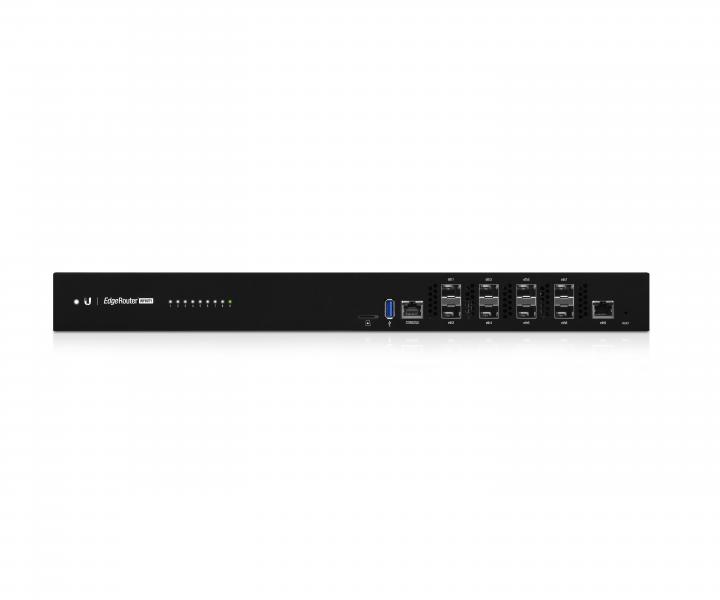

EdgeRouter Infinity (ER-8-XG)

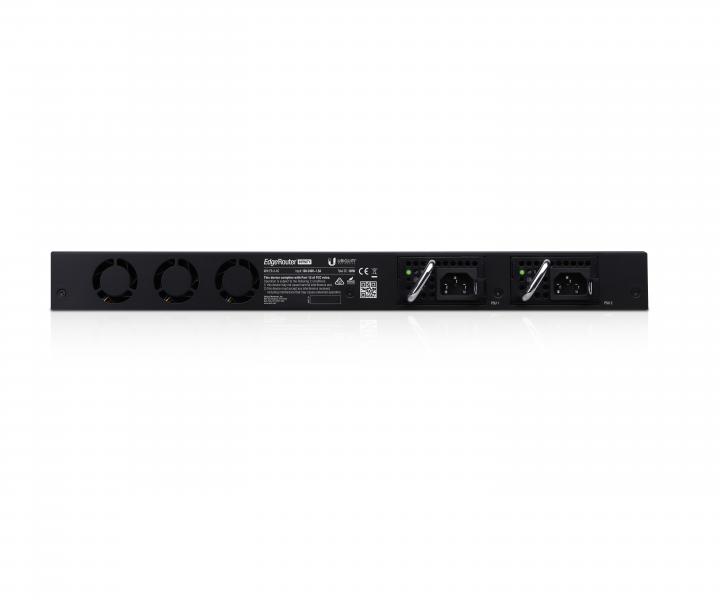

The EdgeRouter Infinity combines 80 Gbps aggregate throughput with price/performance value in a compact rackmountable form factor. Eight SFP+ ports offer 10G fiber connectivity, and a Gigabit Ethernet RJ45 port offers copper connectivity. The EdgeRouter Infinity includes primary and backup AC/DC power supply modules for redundancy. It supports scalable configuration using EdgeOS or the Ubiquiti Network Management System (UNMS). (8) 10G SFP+ Ports and (1) Gigabit Ethernet RJ45 Port Hot-Swappable Modular Power Supplies 16-Core, 1.8 GHz Processor Rackmountable Specifications EdgeRouter Infinity Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72") Weight: - Without Mount: 4.950 kg (10.91 lb - With Mount: 5.045 kg (11.12 lb) Enclosure Characteristics: SGCC Steel Max. Power Consumption: 100W Power Method: Hot-Swappable AC/DC or DC/DC* Power Supply Module Supported Voltage Range: - AC/DC Power Supply Module: 100 to 240VAC, 24VDC Output - DC/DC Power Supply Module: 38 to 54VDC, 24VDC Output LEDs: - System: Status - SFP+ Data Ports:Link/Activity - RJ45 Data Port: Link/Activity Ports: - Serial Console Port: (1) RJ45 Serial Port - Data Ports: (8) SFP+ Ports, (1) RJ45 Gigabit Ethernet Port Layer 3 Forwarding Performance: - Packet Size: 64 Bytes - 18,000,000 pps - Packet Size: 1514 Bytes - 80 Gbps (Line Rate) Processor: MIPS64 16 Core 1.8 GHz with Hardware Acceleration for Packet Processing System Memory: 16 GB DDR4 RAM On-Board Flash Storage:8 MB NOR Flash, 4 GB eMMC NAND Flash Certifications: CE, FCC, IC Rackmount: Yes, 1U Operating Temperature: -5 to 40 C (23 to 104 F) Operating Humidity: 5 - 95% Noncondensing Package contents EdgeRouter Infinity, Mounting Brackets (2), Bracket Screws (8), Mounting Screws (4), Cage Nuts (4), Power Cords (2), Rubber Feet (4).
