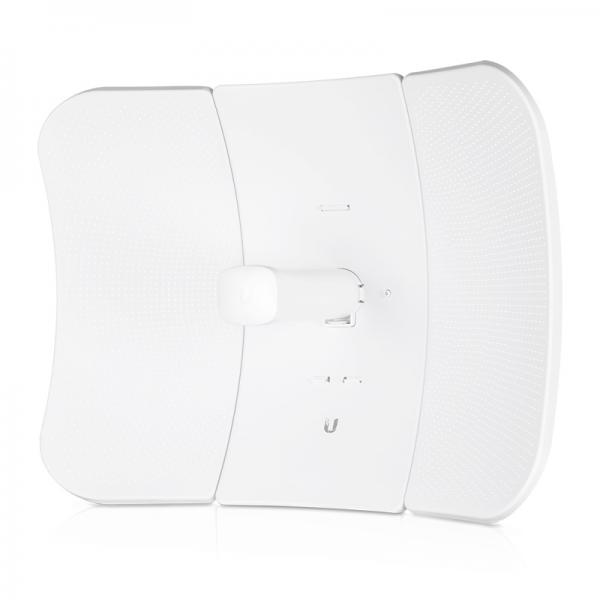

LiteBeam 5AC Long Range
Artikelnummer: LBE-5AC-LR · EAN: 0817882026307
€144,00
Incl. 21% BTW
⚠ Nog maar 4 op voorraad - Bij onze leverancier
Leverinformatie
Niet alles hebben we fysiek in de winkel liggen — de meeste artikelen bestellen we speciaal voor je. Afhalen kan meestal de volgende werkdag, we bellen je zodra het klaarligt. Thuisbezorgen lukt in de meeste gevallen de volgende dag als je vóór 15:00 uur bestelt.
The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI. De…
The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI. Designed for long-range applications, the LBE-5AC-LR
features a larger reflector size and elevation adjustment
(azimuth is adjusted by rotation around the pole).
Improved Radio Design
Improved Mounting
Improved Surge Protection
Management WiFi Radio/UNMS mobile app
AirOS 8
*UNMS mobile app for Android and IOS
Specifications LBE-5AC-LR
Dimensions: 512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
Weight: Without Mount: 1.360 kg (2.998 lb), With Mount 1.735 g (3.825 lb)
Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption: 7W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 24V +/- 10%
Gain: 26 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port
Processor Specs: MIPS 74Kc
Memory: 64 MB DDR2
LEDs: Power, Ethernet
Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Enclosure Characteristics: Reflector (Aluminium) / Plastic: PC
Mounting: Pole-Mounting Kit (Included)
Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
ESD/EMP Protection: ± 24 kV Contact / Air
Operating Temperature: -40 to 70 C (-40 to 158 F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

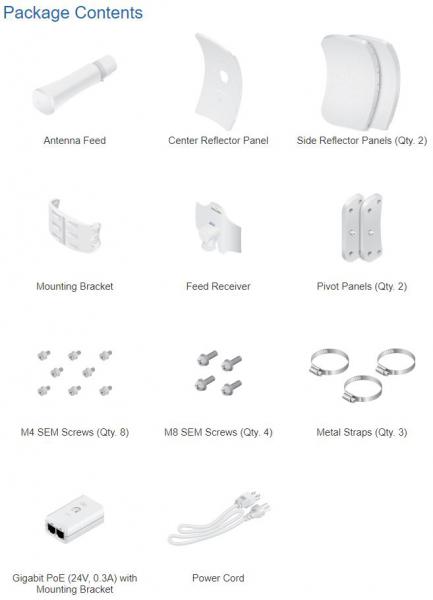

Package Contents
Antenna Feed, Center Reflector Panel, Side Reflector Panels (2), Mounting Bracket, Feed Receiver, Pivot Panels (2), M4 SEM Screws (8), M8 SEM Screws (4), Metal Straps (3), Gigabit PoE (24V, 0.3A) with Mounting Bracket, Power cord
