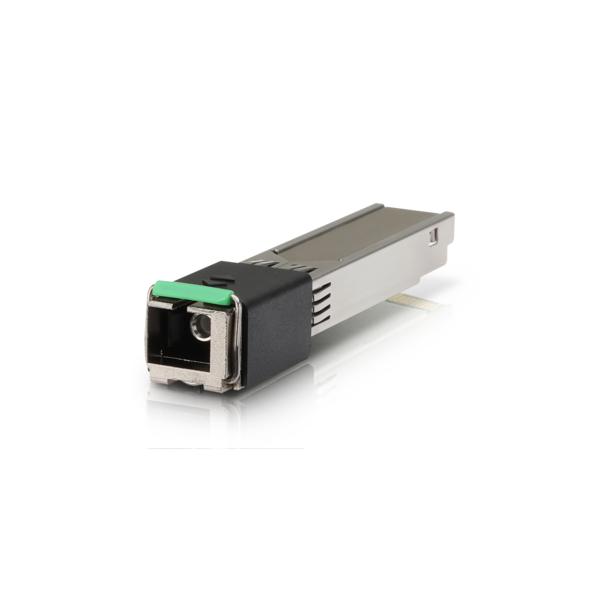

UF-Instant

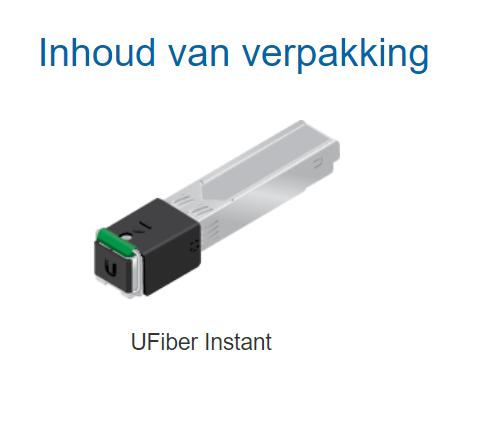

Point-to-multipoint access module with a SFP port and powerful Layer 2/3 switching capability. Gigabit Passive Optical Network CPE. Feature: High-Performance GPON CPE Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure Supports up to 20 km GPON Links Powerful Layer 2/3 Management Features (1) GPON WAN Port, SC/APC (1) 1Gbps SFP interface Specifications Dimensions 69.46 x 13.70 x 11.30 mm Weight 30 g Networking Interfaces (1) SC/APC, GPON WAN (1) SGMII Ethernet LAN Networking Interface Speeds GPON WAN, ITU G.984 GbE LAN 2.488 Gbps Downstream 1.244 Gbps Upstream 1 Gbps Management Interface In-Band Ethernet PON Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm Power Method SFP Power Supply 3.3V Max. Power Consumption 2W Supported Voltage Range 3.3V Processor Specs MIPS 100 MHz Memory Information 32 MB DDR Operating Temperature -10 to 45 C Operating Humidity 10 to 90% Certifications CE, FCC, IC Package Contents: UFiber Instant.
