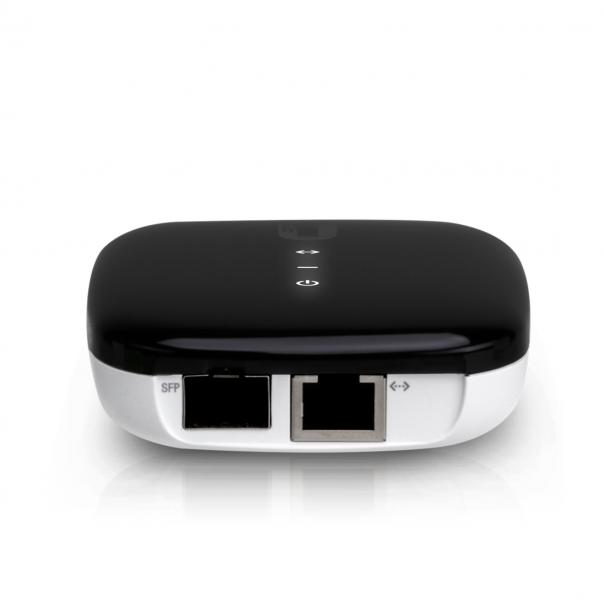

UFiber Active Ethernet

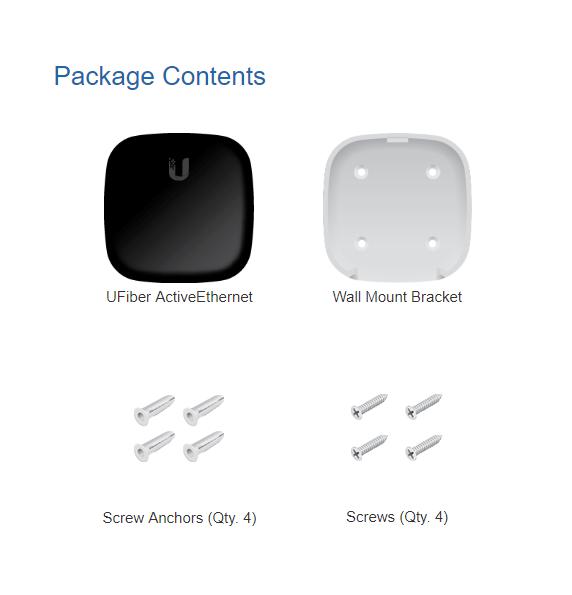

The UFiber Active Ethernet is a 1 Gbps fiber-to-copper media converter; it allows ISPs to deliver active fiber to a customer's premises and connect it to affordable SOHO network equipment lacking SFP ports. Its compact design allows the UF-AE to be discreetly integrated into any environment. Module Compatibility The versatile UF-AE connects any SFP or SFP+ module at the maximum speed of 1 Gbps. All UFiber SFP or SFP+ modules are supported. PoE Convenience The UF-AE is powered by 24VDC passive PoE or 802.3af active PoE. Supported Speeds 1 Gbps fiber uplink speeds and 10/100/1000 Ethernet speeds are supported. Status LEDs Intuitive LEDs indicate link and speed status. Indoor Installation Use the included bracket to easily mount the UF-AE on a wall. Specifications UF-AE Dimensions: 76.5 x 76.5 x 26.8 mm (3.01 x 3.01 x 1.06) Weight: 70 g (2.47 oz) Networking Interfaces: (1) 1 Gbps SFP Port (1) 10/100/1000 Mbps RJ45 Port Power Method: 802.3af PoE: (Pins 1, 2+; 3, 6-) 24V Passive PoE: (Pins 4, 5+; 7, 8-) Power Supply: 802.3af PoE or 24V Passive PoE Device (Power supply not included!) Max. Power Consumption: 1.5W Supported Voltage Range: 16 to 57V LEDs: (1) Ethernet, (1) Optical Signal, (1) Power Operating Temperature: -40 to 60 C (-40 to 140 F) Operating Humidity: 10 to 90% Noncondensing ESD/EMP Protection: +/- 12kV Contact/Air Certifications: CE, FCC, IC Package Contents UFiber Active Ethernet, Wall Mount Bracket, Screws (4), Screw Anchors. The UF-AE requires an active fiber SFP module and does not support passive GPON SFP modules!
