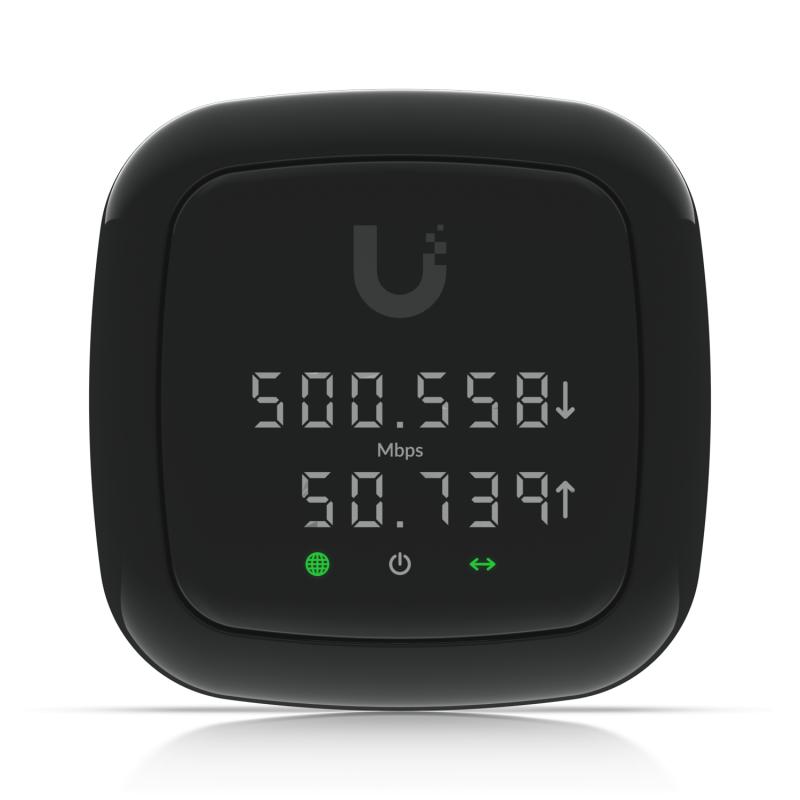

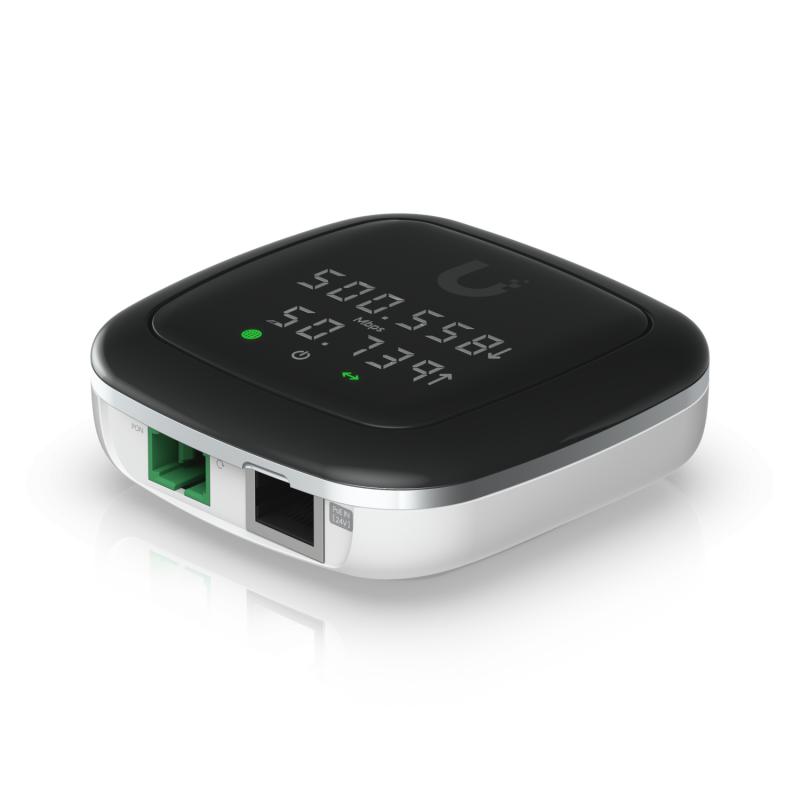

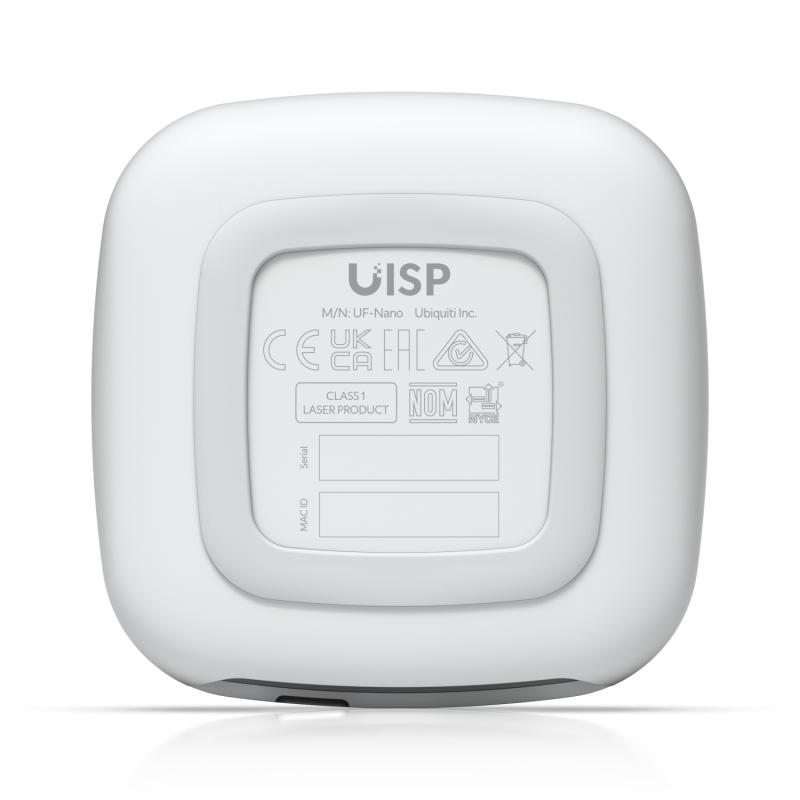

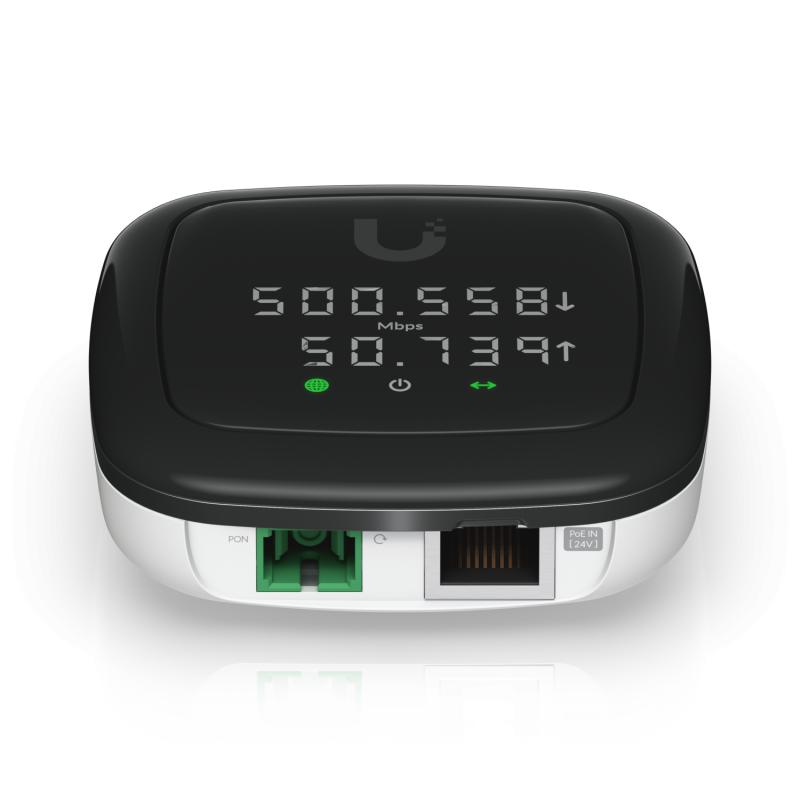

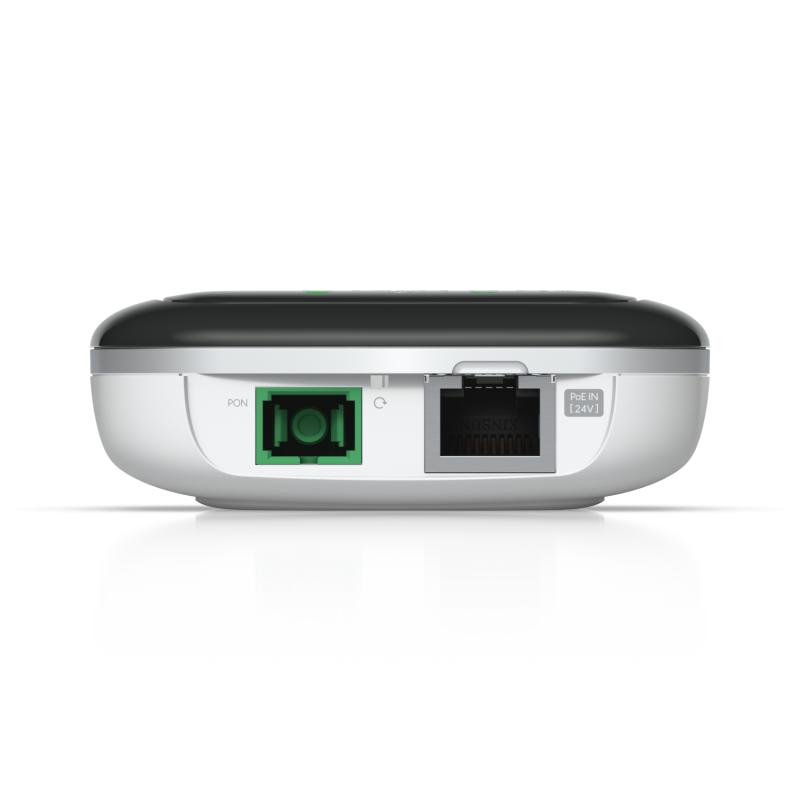

UFiber Nano G Network Unit UF-NANO

The UFiber Nano G is a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design. (1) GPON WAN Port and (1) Gigabit LAN Ethernet Port Digital Display LED for Status Reporting 7W Max. Power Consumption Specifications UF-Nano Dimensions: 77 x 77 x 28 mm (3.03 x 3.03 x 1.1") Weight: 110 g (3.88 oz) Networking Interfaces: (1) SC/APC, GPON WAN, (1) Gigabit RJ45, Ethernet LAN Networking Interface Speeds: - (1) GPON WAN, ITU G.984: 2.488 Gbps Downstream, 1.244 Gbps Upstream - (1) GbE LAN: 10/100/1000 Mbps Management Interface: In-Band Ethernet/PON Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm, RX: -28 to -8 dBm Power Method: Passive PoE (Pins +4, 5; -7, 8) Dying Gasp Support Power Supply: PoE Adapter: 24V, 0.3A (Included) Max. Power Consumption: 7W Supported Voltage Range: 20V to 28V Processor Specs : MIPS32, 240 MHz Memory Information: 128 MB DDR3 Buttons: (1) Display Information (1) Reset Operating Temperature: -10 to 45 C (14 to 113 F) Operating Humidity: 5 to 95% Noncondensing Certifications: CE, FCC, IC Package Contents Nano G, Wall Mount Bracket, Screws (4), Sxrew Anchors (4), Gigabit PoE (24V, 0.3A) with Mount Bracket, Power Cord.
