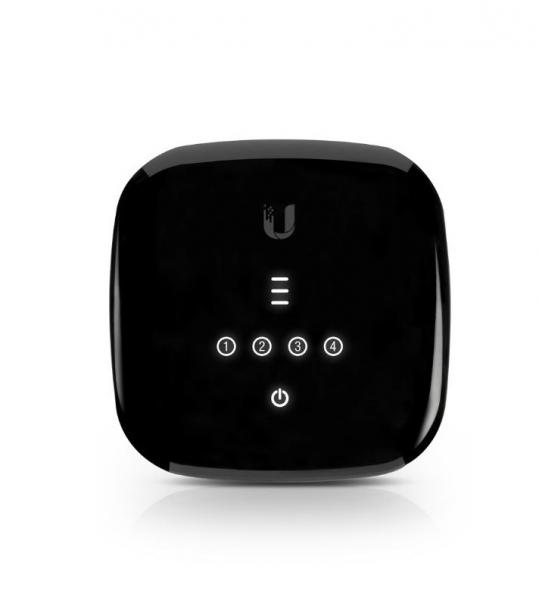

UFiber WiFi

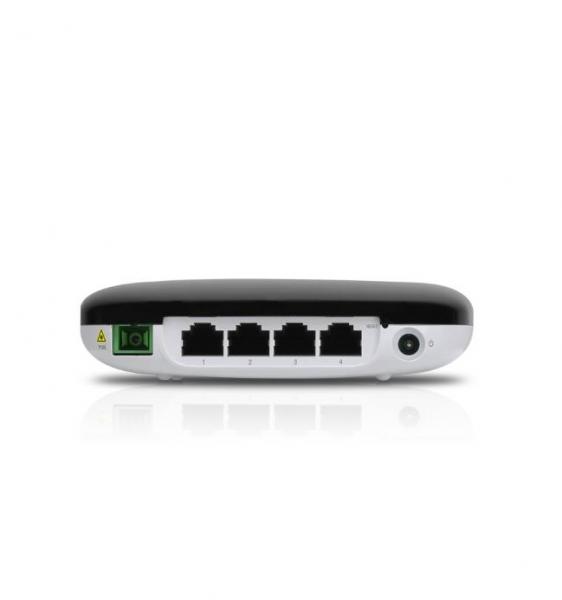

UFiber WIFI is a robust, high-performance GPON CPE that offers routing, four LAN ports, and Wi-Fi. It is powered by 24V passive PoE or a 24V, 0.5A power adapter. High-Performance GPON CPE GPON WAN Port SC/APC Fiber Connector 4-Port RJ45 10/100/1000 VLAN-aware Switch 802.11n WiFi LED diodes for easy diagnostics Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream Specifications UF-WiFi Dimensions: 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25") Weight: 190 g (6.70 oz) Networking Interfaces: - (1) SC/APC, GPON WAN - (4) Gigabit RJ45, Ethernet LAN - (1) Wi-Fi, 802.11n Networking Interface Speeds: GPON WAN, ITU G.984: 2.488 Gbps Downstream, 1.244 Gbps Upstream GbE LAN: 10/100/1000 Mbps: Wi-Fi: 300 Mbps: Management Interface: In-Band Ethernet/PON Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm, RX: -28 to -8 dBm Power Method: DC Jack, 24VDC, 24V Passive PoE (Pins 4, 5+; 7, 8-) Power Supply: 100-240VAC / 50-60 Hz Universal AC/DC, Power Adapter: 24V / 0.5A Max. Power Consumption: 7W Supported Voltage Range: 20 to 28V Processor Specs: MIPS, 900 MHz Memory Information: 256 MB DDR Buttons: (1) Reset Operating Temperature: -10 to 45 C (14 to 113 F) Operating Humidity: 10 to 90% Noncondensing Certifications: CE, FCC, IC Package Contents UFiber UF-WIFI, Screws (4), Screw Anchors (4), Power Adapter (24V, 0,5A).
